CMCI

F04 VD-E

€0.00
Tax included

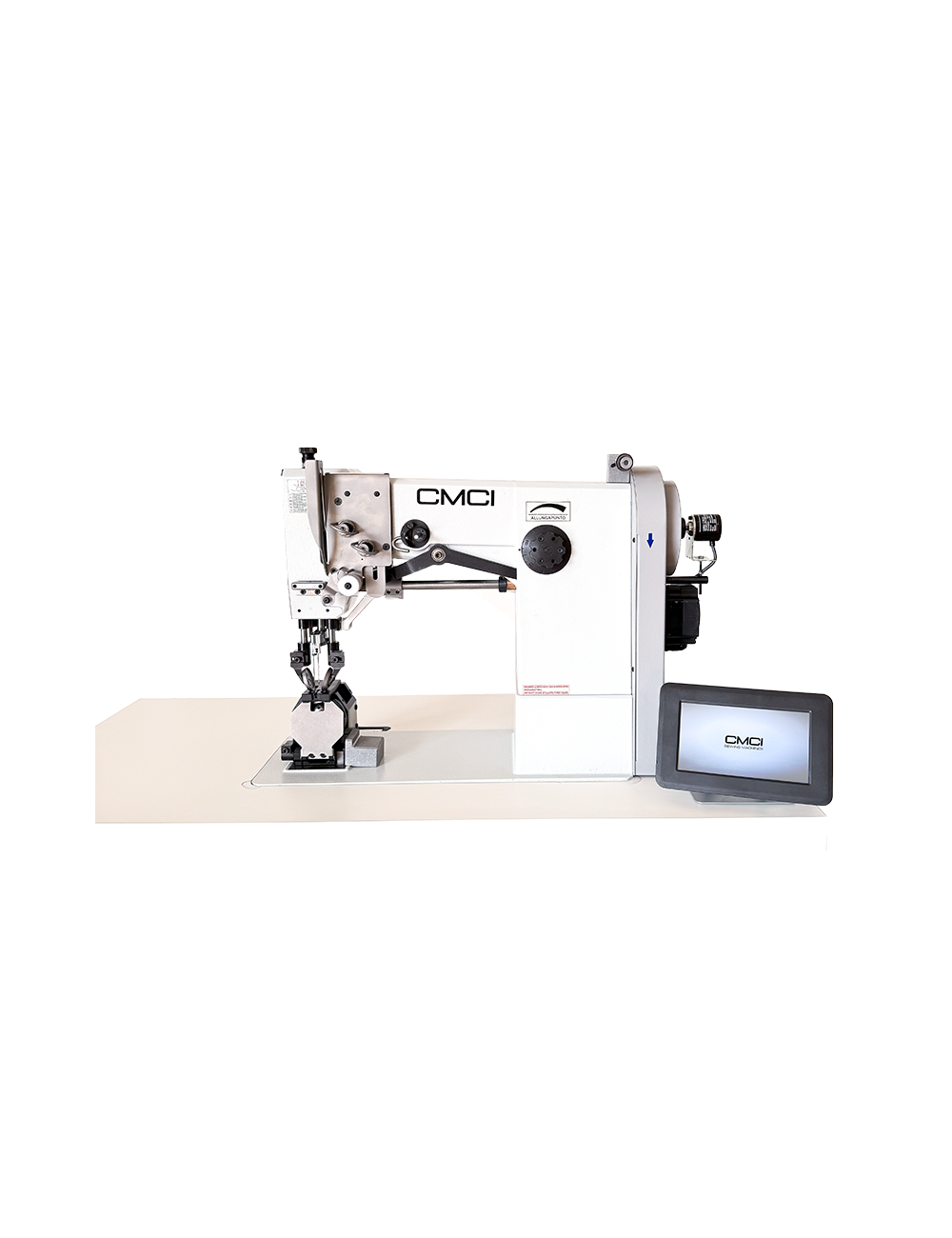

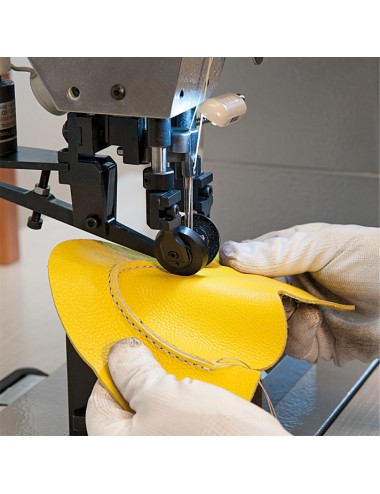

Special post bed sewing machine for ornamental

purposes, with multiple stitch patterns selectable by the operator by PLC. Equipped with stepper motors, available with one or two needles versions. Equipped with our own larger, oscillating and reversed hook. Fixed bottom feed. Independent and balanced rotating set.


Optional:

  • Thread weaver modification
  • Incision upper modification
Quantity

Add to favorites Add to compare

Technical features

  • Speed: 500 stitches/min
  • Stitch length: 0-12mm
  • Threads: from 0.4 mm polyester to max. 1 mm waxed
  • Needle system: 328 - 214 x 2
  • Net weight: 120 kg
  • Gross weight: 145 kg
  • Packaging size: 124x70x150 cm

Product Details

F04 VD-E

Data sheet

Max sewing speed
500 punti/min
Max stitch lenght
0-12 mm
Needle system
328 - 214 x 2
Dimensions
124x70x150h cm
Weight
120 kg

Download

F04-VD-E Scheda Techina

Download (1.13MB)

Quick Compare

Product
 F04 2N F04 VD
Description

Special post bed machine for ornamental stitching on mock moccasins and leather goods.

  • 1 or 2 Needles
  • Enlarged oscillating hook
  • Fixed bottom feed
  • Independent and balanced rotating set


Optional:

Incision upper modification

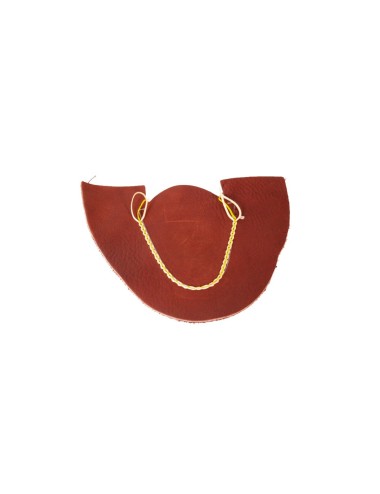

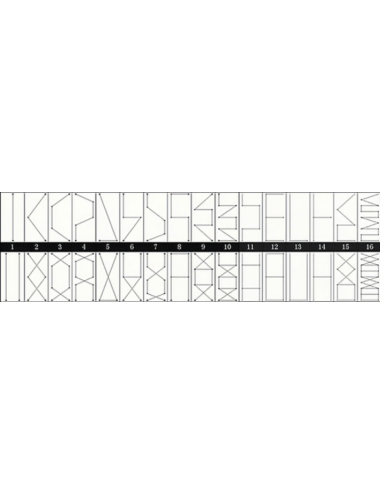

Special post bed sewing machine particularly suitable for ornamental purposes, on mock moccasins and leather goods with 12 various designs.

  • 1 or 2 Needles
  • Equipped with our own larger, oscillant and reversed hook.
  • Fixed bottom feed
  • Independent and balanced rotating set.

    Optional:
  • Thread weaver modification
  • Incision upper modification
Functions
Max sewing speed
 500 punti/min 500 punti/min
Max stitch lenght
 0-10 mm 0-12 mm
Needle system
 4011 o 4035 328 - 214 x 1
Voltage
 220V 50/60 Hz 220V 50/60 Hz
Weight
 125 kg 120 kg
